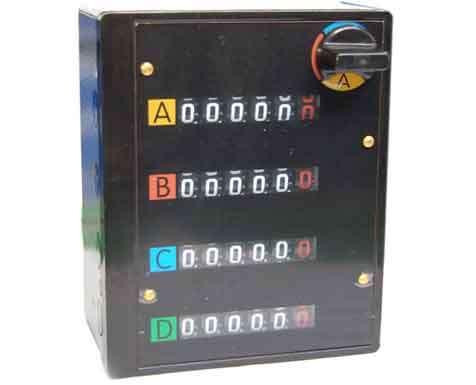

J115-001 Series Textile Mechanical Counter
Working principle & Introduction: With the rotation of the input axis, the counter drives the internal worm, worm gear and gear mechanism to display the rotation rounds on the 4 groups of decimal counting wheels, which are controlled by a division adjusting knob. When the division adjusting knob indicates “A”, the input axis rotates, and the group A counting wheels count. If the adjusting knob is adjusted to B, C and D respectively, the counting wheel group to which the adjusting knob points will display the rotation rounds of the input axis. This counter can only be used to carry out accumulative adding, it has no reset mechanism. It can be used to record the output of different shifts on the same machine, and mainly applied in the looms and tape weaving machines with multi-shifts, in textile industry.
0532-88706080
chuangying@hitechqd.com
  • Performance
Technical parameters：

Model

J115-001

Display digit size

H×W 6.5mm×3.8mm

Ambient temperature

-10℃～+50℃

Max. capacity of accumulative counting

99999.9

Rotation times of input axis/digit display

12.5：1

Rate rotation speed

≤1200r/min

Torque

≤1.5 N·cm

Shift

4

This product can be designed and manufactured according to customer’s needs

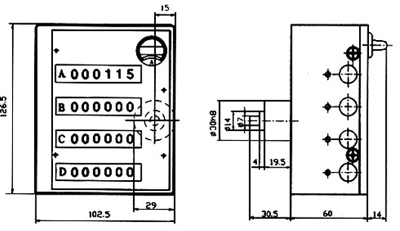

Product installation&dimension diagram：
