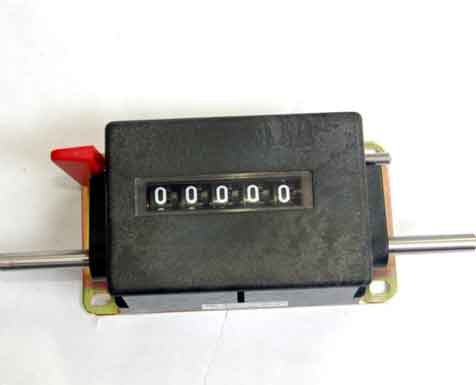

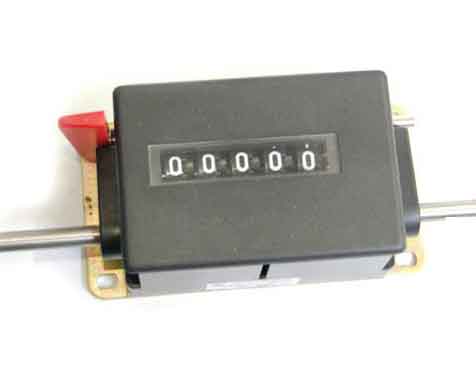

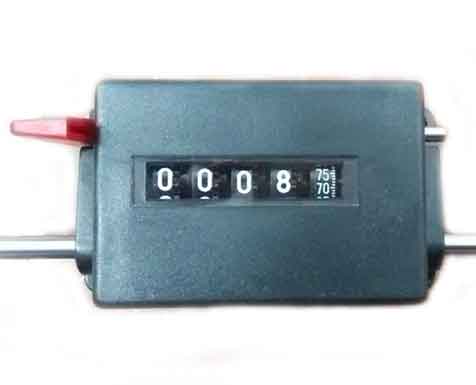

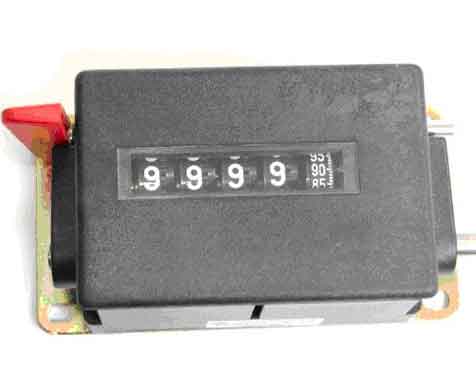

JZ095B Series 5-digit Rotary Counter With Lever Reset
Working principle & Introduction: JZ095B 5 digit Mechanical Counter is used to measure rotation speed of various machineries, the length and flow amount of finished products and to measure the depth and height etc. It is widely applied in machinery, metallurgy light industry and printing & dyeing etc. It is a necessary tool for measuring and recording.
0532-88706080
chuangying@hitechqd.com
  • Performance
Product series and relevant technical parameter:

Model

JZ095B

JZ095B-IV


JZ095B-

JZ095B-

JZ095B-

JZ095B-VI

JZ095B-X

Display Figure Size

H×W:6.5 mm×3.8 mm

Operating Temperature

-10+50

Maximum Integrating Capacity>

9999.99

99999

9999.9

Transmission Ratio

1:5

1:10

1:1

1:2

1:0.624

Rated Revolution

≤600r/min

≤300r/min

≤1000r/min

1200r/min

Torque

≤1 N·cm

The product can be designed and manufactured according to user needs.

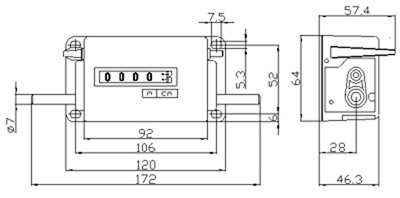

Product installation & dimension diagram:
