Type |
Transmission ratio |
Display digit size(H×W) |
Max. capacity accumulative counting |
Rotation (r/min) |
Torque (N·cm) |
Operation temperature(℃) |
Rotation direction |
Load of output signal |
J250 001 |
1:1 |
6.5 mm×5.6 mm |
99999 |
≤3000 |
≤1.8 |
-10~+50 |
Parallel out axis X Anticlockwise |
最高电压250V |
J250 002 |
1:1 |
Parallel out axis X Clockwise |
||||||
J250 011 |
1:10 |
≤300 |
Parallel out axis X Anticlockwise |
|||||
J250 012 |
1:10 |
Parallel out axis X Clockwise |
||||||
J250 021 |
1:5 |
|
|
Parallel out axis X Anticlockwise |
||||
J250 022 |
1:5 |
|
|
Parallel out axis X Clockwise |
||||
J250 031 |
1.6:1 |
|
|
Parallel out axis X Clockwise |
||||
J250 041 |
5:1 |
|
|
Parallel out axis X Clockwise |
||||
J250 042 |
5:1 |
|
|
Parallel out axis X Clockwise |
||||
J250 101 |
1:1 |
≤1500 |
≤3 |
Vertical out axis X anticlockwise |
||||
J250 102 |
1:1 |
Vertical out axis X clockwise |
||||||
J250 301 |
1:1 |
≤240 |
≤10 |
Parallel out axis X Anticlockwise |
||||
J250 302 |
1:1 |
Parallel out axis X Clockwise |
||||||
This product series can be designed and manufactured according to customer’s needs. |

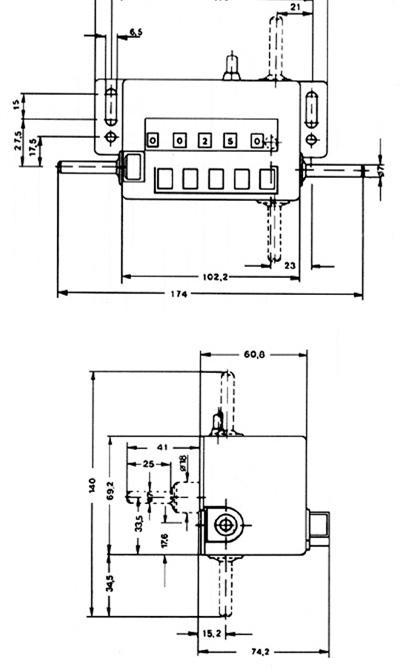

Product installation & dimension diagram:
