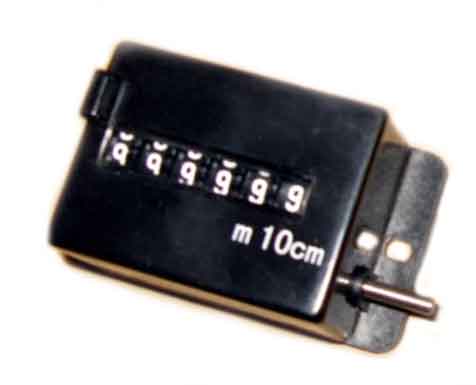

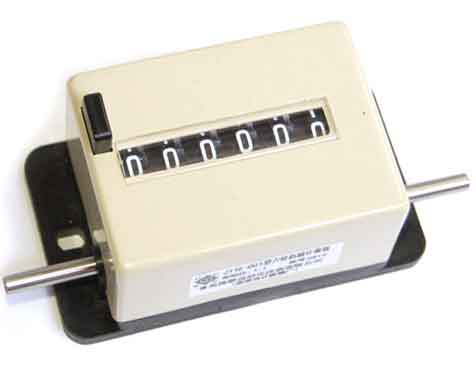

6-digit Mechanical Rotation Counter, the counting value is added 1,2,5,10 when the active axis rotates one round anticlockwise. With reset button, the counting wheel can reset simultaneously. The figure of the counting wheel can be used to measure the rotation speed of various machinery and to measure length, depth and flow amount etc., and it is widely applied in machinery, wire-making, tape-making and printing etc.
Model |
J116-001 |
J116-002 |
J116-004 |
J116-007 |
Display digit size |
H×W: 4mm×2.5mm |
|||
Ambient temperature |
-10℃~+50℃ |
|||
Max. capacity of accumulative |
999999 |
99999.9 |
99999.9 |
|
Transmission ratio |
1:1 |
1:2 |
1:5 |
1:10 |
Rate rotation speed |
≤1000r/min |
≤500r/min |
≤500r/min |
≤300r/min |
Torque |
≤3N·cm |
|||
Weight |
约70g |
|||
This product can be designed and manufactured according to customer’s needs. |
