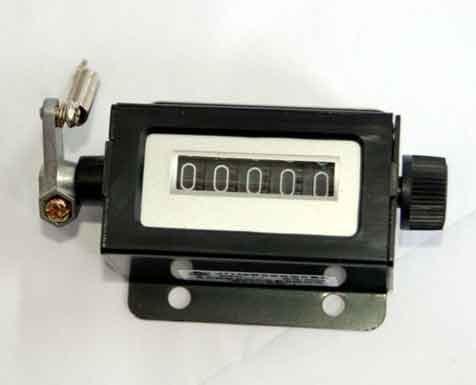

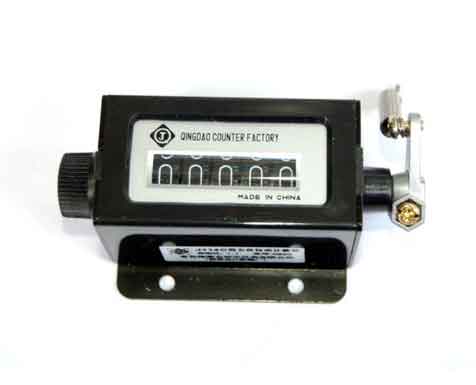

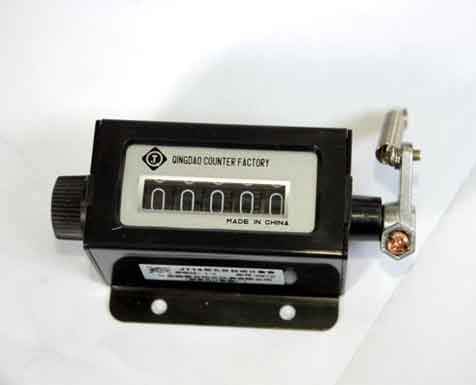

Operating Principle and Description: J114 5 digits stroke counter, used for totalizing and recording the number of instrument or machinery actions, can finish the reading accurately and quickly, with surfacing-mounting easily install on the machinery. In addition to digital direct-reading display, with knob reset. Good choice for industries of textile, high-voltage switchgear, breakers, fuel dispenser, etc
|
Model |
J114 |
J114A |
J114B |
J114C |
J114Z |
J114N |
|
Display Figure Size |
H×W 4.4 mm×3 mm |
|||||
|
Operating Temperature |
-10℃～+50℃ |
|||||
|
Maximum Integrating Capacity |
99999 |
|||||
|
Gear Ratio |
1:1 |
|||||
|
Counting Rate |
≤500 time/min |
|||||
|
Pulling angle |
Maximum pulling angle 43°, minimum pulling angle 38° |
|||||
|
Torque |
≤8 N·cm |
|||||
|
Reset mode |
Rotate zero |
Rotate zero |
Unilateral installation |
No return to zero |
Rotate zero |
Rotate zero |
|
Pull direction |
|
|
|
|
|
|
|
Weight |
80g |
About 70g |
About 75g |
About 80g |
||
|
The product can be designed and manufactured according to user needs |
||||||
