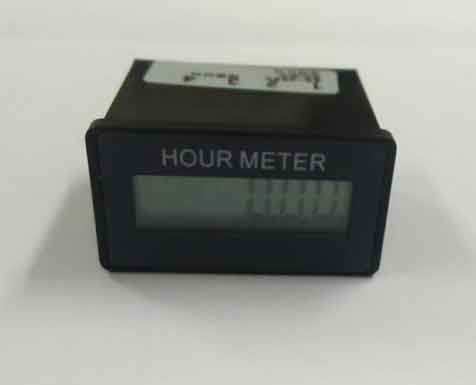

C306A LCD Electronic Timer Counter
C306A LCD electronic timer is a controlled timing product (hereinafter referred to as timer) developed by our company according to the market demand of electronic instrument. It adopts highly integrated patch components, ultra-small size, long service life and firm and reliable mounting structure.
0532-88706080
chuangying@hitechqd.com
  • Performance
Technical Parameters
Display：
 7Segment liquid crystal display
Number of bits：
 6 Bit
Character height：
 7Millimeter
voltage：
 Built-in battery power
Trigger voltage：
 AC/DC 85V～265V
Tired time error：
 ≦0.01%
Timing range：
 0～9999.59 ；That is from 0 to 9999 hours and 59 minutes
Display method：
 XXXX.XX (Time)
Operating temperature：
 -20 - +85℃
Storage temperature：
 -20 - +85℃
Use humidity：
 35 - 85%RH
Battery Life：
 More than 6 years

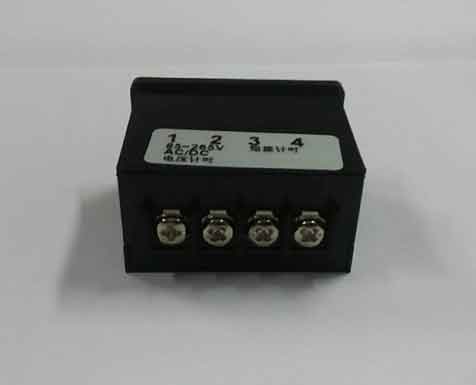

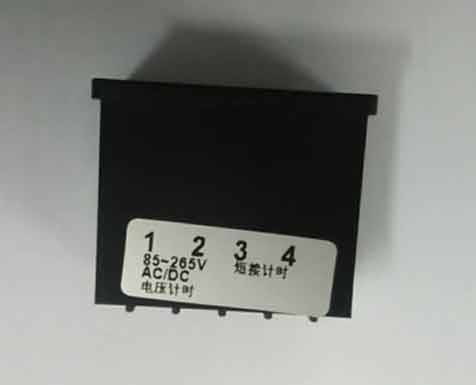

Wiring: The terminal block is at the rear of the timer, and the terminals are crimped from left to right, wires 1 to 4 are firmly connected, and the terminals are connected:
Terminal 1：
 Timing control（AC）
 (connected with Terminal2, DC voltage control timing count)
Terminal 2：
 Timing control（AC）
 (connected with Terminal1, DC voltage control timing count)
Terminal 3：
 0V
Terminal 4：
 Timing control terminal
 (connected with Terminal3, short circuit control timing count)
